| ENGINE |
|
|
| |
Cylinders: |
2. air-cooled. |
| |
Bore: |
58 mm. |
| |
Stroke: |
62 mm. |
| |
Cubic Capacity: |
328 cc. |
| |
Piston Area: |
8.2 sq. ins. |
| |
Compression Ratio : |
7.4 : 1. |
| |
Carburetter: |
Amal 'Monobloc' 376/79. |
| |
Fuel Pump: |
S. U. Electric. |
| |
Maximum Power: |
18 b.h.p. at 5,000 r.p.m. |
| |
|
|
|
TRANSMISSION |
|
|
| |
Clutch: |
Albion multiplate. |
| |
Top Gear: |
5.81 |
| |
Second Gear: |
9.3 |
| |
First Gear: |
15.2 |
| |
Reverse Gear: |
19.0 |
| |
Final Drive: |
By Chain |
| |
Final Drive Sprocket: |
42 teeth. |
| |
Top Gear m.p.h. at 1,000 r.p.m. |
11.2 m.p.h. |
| |
|
|
|

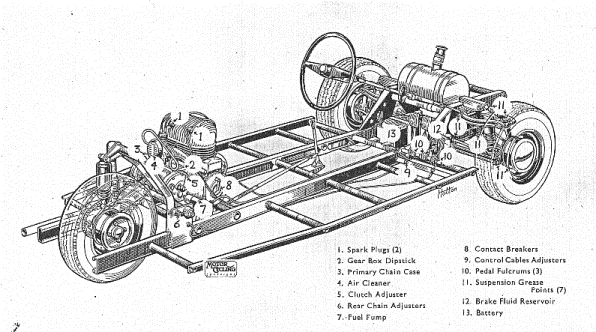

CHASSIS |
|
|
| |
Frame: |
14 gauge channel section. |
| |
Brakes: |
Girling Hydraulic. |
| |
Brake Drum Internal Diameter: |
7 ins. |
| |
Frictional Lining Area: |
50.625 sq. ins. |
| |
Handbrake: |
Pull-on, pistol type. |
| |
Front Suspension: |
Independent wishbone with |
| |
|
Armstrong
coil spring and damper.
|
| |
Rear Suspension: |
Swinging arm with Armstrong |
| |
|
coil
spring and damper unit. |
| |
Steering Gear: |
Worm and peg. |
| |
Steering Wheel: |
Two spoke. |
| |
Steering Column: |
Solid. with rubber mounted |
| |
|
universal joint. |
| |
Tyres: |
5.20" x 13" Pirelli. |
| |
Wheels: |
Solid disc type. All interchangeable. |
| |
Silencer: |
Burgess. |
| |
|
|
|
BODY |
|
|
| |
Type: |
Cellobond Polyester Resins |
| |
|
reinforced with glass fibre. |
| |
Luggage Accommodation: |
Rear boot, 2 door pockets, glove |
| |
|
pocket in dash, Hood tray. |
| |
Windscreens: |
Curved safety glass. Triplex. |
| |
Hood & Sidescreens: |
Standard equipment. |
| |
|
|
|
DIMENSIONS |
|
|
| |
Overall Length: |
11' 8" |
| |
Overall Width: |
4' 10" |
| |
Seat Width: |
3' 11" |
| |
Doors: |
2' 11" |
| |
Track: |
4' 01/2" |
| |
Wheel base: |
7' 11" |
| |
Weight: |
7 1/4 cwt. |
| |
Ground Clearance: |
7" |
| |
Turning Circle: |
31' |
| |
|
|
|
ELECTRICAL
|
|
|
| |
Exterior Lights: |
2 Head / Side lamps. |
| |
|
2
Stop / Tail lamps. |
| |
|
1
Rear number plate light. |
| |
Warning Lights: |
Ignition, main beam. |
| |
Battery: |
12 Volt. |
| |
Starter: |
Siba, Dynastart. |
| |
Windscreen Wipers: |
2 blades, 2 speed.
|
| |
Speedometer: |
Smiths. |
